Installing BinBar

BinBar installation takes 60 seconds.

Before installing, make sure the BinBar battery is installed. See instructions here

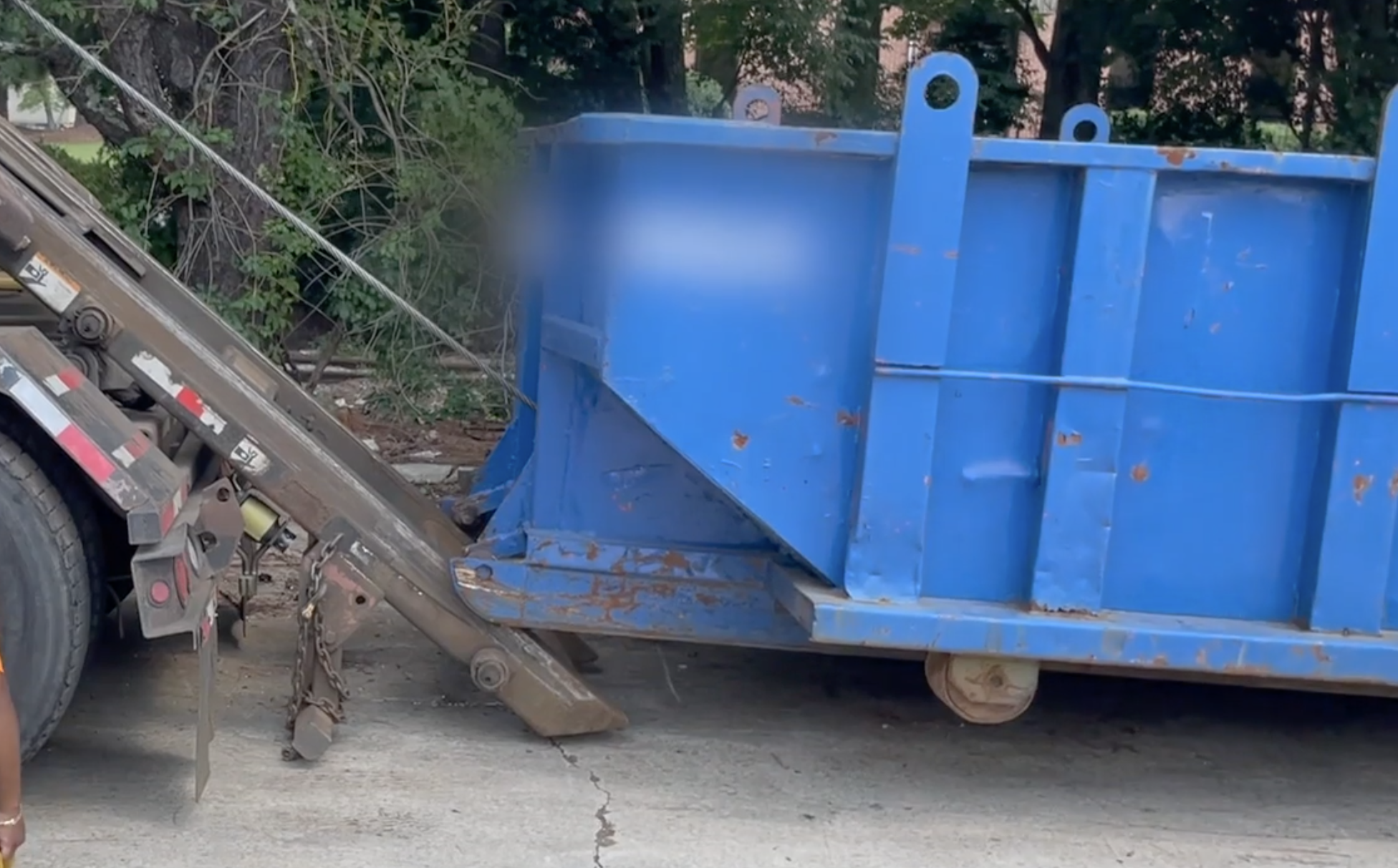

Lower Container at Site​

Bring the container to the appropriate site. Lower the container to 1 foot above the ground

container 1 foot

Wheel BinBar to Container​

Using the handle on one side of BinBar, wheel BinBar to the container.

Install BinBar Under Container​

Set BinBar on the ground, and then use the installation rod to slide BinBar underneath the container.

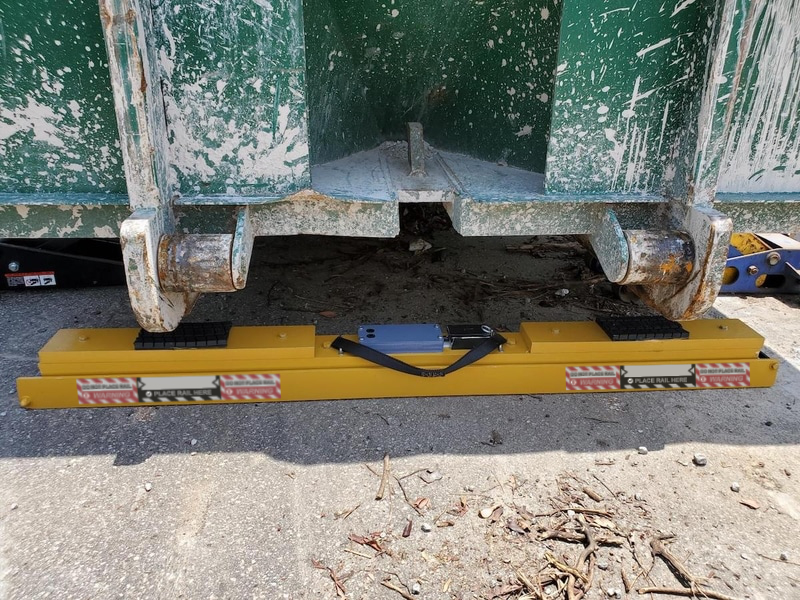

Ensure the labels on the side of BinBar are aligned with the container rails.

bar labels container on binbar

Lower Container Fully and Remove Cable​

Next Steps​

That's all! The BinBar is automatically publishing weight data.

To view data, see the client application
